Callies CACSB6385ES3B9AH Compstar Series Forged H-Beam Conrod Set 6.385" Chev BB

Callies CACSB6385ES3B9AH Compstar Series Forged H-Beam Conrod Set 6.385" Chev BB

CACSB6385ES3B9AH
$1,474.20 AUD
$1,474.20 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

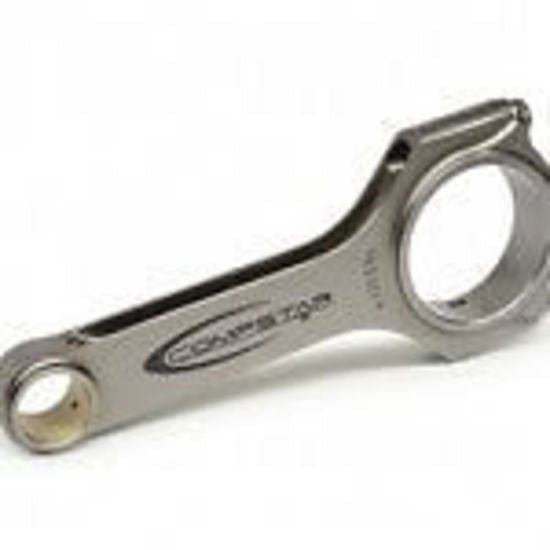

CALLIES COMPSTAR SERIES FORGED H-BEAM CONROD SET 6.385" CHEV BB CACSB6385ES3B9AH
Better by design, Callies Compstar connecting rods offer high performance and a trouble-free engine build. Concerns about out-of-round, big-end bore sizing, repeatability, time-saving details, and upgrade costs are answered with Compstar connecting rods. Their forged 4340 steel rods are put through a lengthy stress-relief process and burnishing of threads and bolt spot faces to ensure dimensional repeatability, no matter how many times rods are torn down and reassembled. Pin bushings are chamfered and honed, parting line edges are generously chamfered, and bearing locating tab slots are deburred, all in an effort to save you time and trouble. ARP 2000 bolts and stroker clearances are standard with Compstar rods. Choose either their original H-beam design or heavy-duty I-beam designed rods. For high performance use right out of the box, plus value and peace of mind, try Callies Compstar connecting rods. Specs:
Application: Chev big block Mark IV 396-454 C.I.D.
Connecting Rod Length Center to Center (in): 6.385 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Steel
Connecting Rod Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Cap screw
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: L19 alloy
Fastener Yield Strength (psi): 230,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 816
Rod Journal Diameter (in): 2.200 in.
Big End Bore Diameter (in): 2.3250 in.
Pin End Bore Diameter: 0.990 in.
Big End Width (in): 0.990 in.
Pin End Width (in): 1.050 in.
Advertised Horsepower Rating (hp): 850 hp
Advertised RPM Rating: 7,500 rpm
Weight Matched Se Yes
Remanufactured: No
Magnafluxed: Yes
Quantity: Sold as a set of 8.
Notes: Custom pistons required when using connecting rods with any length other than OE.




Manufacturer Part Number:
