Dart

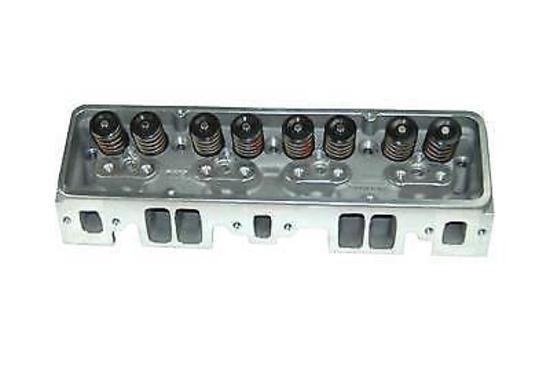

DART DA127322 Chev SB SHP Alloy Heads 200cc Intake 64cc Chamber Complete (pair)

DART DA127322 Chev SB SHP Alloy Heads 200cc Intake 64cc Chamber Complete (pair)

DA127322
$2,585.30 AUD
$2,585.30 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

These Dart SHP Special High Performance cylinder heads are designed to provide an affordable option to those looking for the weight savings of aluminum heads for a performance street engine. They are manufactured from A356-T6 aluminum and are designed to work with most off-the-shelf components. These SHP cylinder heads are available with 64cc combustion chambers and 200cc intake runner ports that are precision-cast and designed to offer excellent flow and power without the need for CNC-machined porting. They feature optimized chambers for increased combustion efficiency and multi-angle intake seats. The cylinder heads' radiused exhaust seats dramatically increase their performance and the manganese bronze valve guides increase their life.



  • Application: Chev Small Blcok Geni I 327-350-400 C.I.D
  • Cylinder Head Style Assembled
  • Cylinder Head Material Aluminum
  • Cylinder Head Finish Natural
  • Combustion Chamber Volume (cc) 64
  • CNC-Machined Combustion Chamber No
  • Intake Runner Volume (cc) 200cc
  • Exhaust Runner Volume (cc) 75cc
  • CNC-Machined Intake Runner No
  • CNC-Machined Exhaust Runner No
  • Combustion Chamber Style Heart
  • Intake Port Location Standard
  • Exhaust Port Shape Square
  • Exhaust Port Location Standard
  • Spark Plug Style Straight
  • Intake Valves Included Yes
  • Intake Valve Diameter (in) 2.020 in.
  • Exhaust Valves Included Yes
  • Exhaust Valve Diameter (in) 1.600 in.
  • Valve Springs Included Yes
  • Maximum Valve Lift (in) 0.620 in.
  • Outside Diameter of Outer Spring (in) 1.437 in.
  • Damper Spring Included No
  • Number of Springs Per Valve Dual
  • Retainers Included Yes
  • Retainer Material Steel
  • Locks Included Yes
  • Lock Style 10 degree
  • Valve Stem Seals Included Yes
  • Valve Stem Seal Style Umbrella
  • Rocker Arm Studs Included Yes
  • Rocker Arm Nut Thread Size 3/8-24 in.
  • Rocker Arms Included No
  • Rocker Arm Nuts Included No
  • Guideplates Included Yes
  • Guideplate Pushrod Size 5/16 in.
  • Valve Cover Mounting Style Center and perimeter bolt
  • Accessory Bolt Holes Drilled Yes
  • Intake Valve Angle 23
  • Exhaust Valve Angle 23
  • Valve Guides Included Yes
  • Valve Guide Material Manganese bronze
  • Valve Seats Machined Yes
  • Valve Seat Machine Style 5-angle intake/2-angle exhaust
  • Valve Seat Material Powdered metal
  • Steam Holes Drilled No
  • Oiling Style Through pushrod
  • Machined for O-Ring No
  • Heat Crossover No
  • Quantity Sold As A Pair

Manufacturer Part Number:
