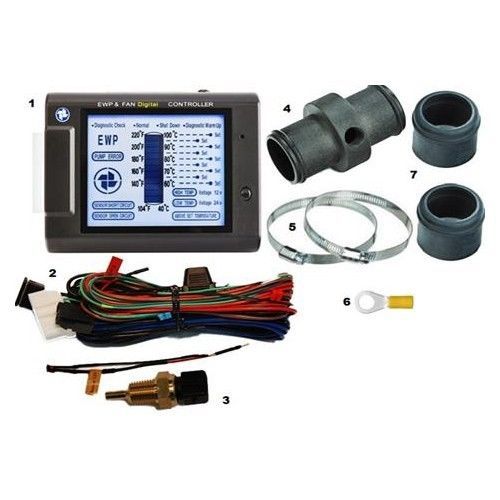

Davies Craig DC8001 Digital EWP Fan & Water Pump Controller LCD (12V & 24V)

DAVIES CRAIG DIGITAL FAN & WATER PUMP CONTROLLER DC8001The unique LCD EWP®/Fan Digital Controller will manage the operation of your chosen EWP® by varying the speed of your pump in response to coolant temperature and manage control of your electric Thermatic® Fan, No need for a separate thermal switch.The Controller varies the speed of your EWP® looking for, and locking onto your target temp. If the engine temp goes 3 degrees C over the target, the Controller will run your radiator fan until the target temp is restored. And it now does 12 & 24 Volt.Specs:Davies Craig Pty Ltd is very pleased to announce the arrival of the updated Liquid Crystal Display (LCD) EWP®/Fan Digital Controller!
This LCD EWP®/Fan Digital Controller (Part #8000) is Australian designed and as part of this Australian manufacturing company's continuous improvement program this advanced Digital Controller boasts a suite of enhancements.
These include:
• The prominent blue Liquid Crystal Display screen (pictured)
• Now suitable for all 12v & 24v electrical systems, with relevant displays
• Genuine Thermometer, with coolant and targeted/set temp. displays
• Diagnostic check & warm-up signals
• Nine (9) targeted/set coolant temperatures, 60C (140F) to 100C (212F)
• Flashing “EWP®” logo signifying water pump in operation
• Davies Craig Thermatic® Fan logo, circulating signifying fan in operation
• Flashing High & Low Voltage indicators
• Low & High Temp indicators
• Audible alarm -
* if coolant temp doesn't exceed 40ºC (104ºF) within 5 mins of start-up
* when coolant temperature exceeds 10ºC (50ºF) of set/target
* when coolant temperature exceeds 100ºC (212ºF)
• Above Set/Target Temperature indicator accompanies audible alarm
• Temperature Sensor short & open circuit indicators
• Automatic time-out, EWP® runs for 3 minutes or until engine temp has reduced to -10â—¦C (-14F) below set/targeted temp whichever occurs first.
The updated Davies, Craig LCD EWP®/Fan Digital Controller (#8000) as an engine management component has undergone extensive research, development, vehicle and test centre scrutiny.
The updated LCD Digital Controller how has two specific functions. This unique Controller will now manage the operation of the EWP® by varying the speed of the EWP® in response to the temperature of the engine and manage control of your electric engine fan. The Controller has a push-button on the facia panel that offers target temperatures, 60ºC (140°F) 65ºC (150°F) 70C (160°F) 75ºC (165°F) 80ºC (175°F) 85ºC (185°F) 90ºC (195°F) 95ºC (205°F). Generally, higher engine temperature will offer improved fuel efficiency and lower engine temperature more power. The LCD Digital Controller will now operate the engine's electric fan automatically once the engine has reached +3c above the target temperature. A significant benefit too is the Controller allows the EWP® to run on after ignition shutdown to reduce heat soak. It is recommended that engine operational temperatures be checked with manufacturer.
The LCD Digital Controller can be used with our EBP however it is not recommended as it will not vary the speed of the pump in response to temperature but rather simply turn the pump on and off once the top end temperature is reached. For a far more economical & appropriate solution, we would recommend Part Number 0401 & 0444 to turn the EBP on and off at your set temp.
*Note: This controller (Part No. 8000) is set up for negativley earthed systems however with a wiring adjustment, can also handle positive earthed systems.
