SCAT Engine Components

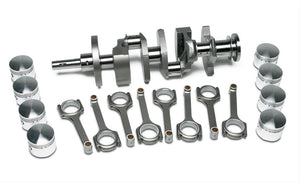

SCAT SC1-94614BI Ford 286 Street Performance Engine Rotating Assembly Series 9000

SCAT SC1-94614BI Ford 286 Street Performance Engine Rotating Assembly Series 9000

SC1-94614BI
$4,549.10 AUD
$4,549.10 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Scat engine rotating assemblies are available with either a high-quality Scat forged 4340 crankshaft or Scat's Series 9000 cast crankshaft and I-beam or H-beam connecting rods, with 7/16 in. or 3/8 in. cap screw bolts.

For maximum power and reliability, Scat adds rod and main bearings from King, Federal Mogul, or Clevite 77, depending upon the application—and pistons and piston rings made by such well-known manufacturers as SRP/JE, Ross, KB, Mahle, Diamond, and Probe. Kits with cast and standard forged pistons have standard rings; kits with premium forged pistons have file-fit rings. Nearly 800 Scat kits are available; order the package tailored for fitment with your engine application.



  • Actual Engine Displacement: 4.7L/286
  • Bore (in): 3.313 in.
  • Bore (mm): 84.150mm
  • Engine Stroke (in): 4.125 in.
  • Balanced: Yes
  • Harmonic Balancer Included: No
  • Flexplate Included: No
  • Flywheel Included: No
  • Pistons Included: Yes
  • Piston Rings Included: Yes
  • Piston and Ring Oversize (in): 0.125 in.
  • Piston Material: Forged aluminum
  • Piston Style: Dome, with no valve reliefs
  • Wrist Pin Style: Floating
  • Piston Ring Facing Material: Plasmamoly
  • Crankshaft Included: Yes
  • Crankshaft Material: Cast steel
  • Engine Balance: Internal
  • Connecting Rods Included: Yes
  • Connecting Rod Length Center to Center (in): 7.000 in.
  • Connecting Rod Material: Forged 4340 steel
  • Connecting Rod Beam Style: H-beam
  • Rod Bearings Included: Yes
  • Rod Bearing Undersize (in): Stock
  • Rod Bearing Undersize (mm): Stock
  • Main Bearings Included: Yes
  • Main Bearing Undersize (in): Stock
  • Main Bearing Undersize (mm): Stock
  • Cam Bearings Included: No
  • Gaskets Included: No
  • Oil Pump Included: No
  • Camshaft Included: No
  • Lifters Included: No
  • Timing Chain and Gears Included: No
  • Plastigage Included: No
  • Assembly Lubricant Included: No
  • Quantity: Sold as a kit.
  • Notes: Kit designed for late engine blocks. H-Beam rods include 3/8 in. ARP 8740 cap screw bolts.
